HEG Series
Natural Gas/LP Belt Drive

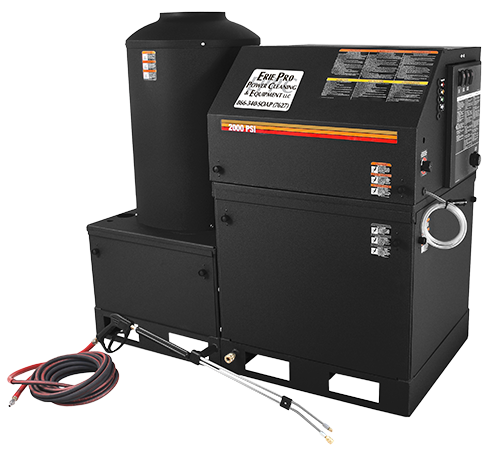

HEG-2004-0E2G natural gas/lp power washerModel HEG-2004-0E2G pictured

  • Single or three-phase open drip-proof electric motor with thermal overload protection
  • Belt drive triplex piston General pump with ceramic plungers
  • Factory preset trapping underloader
  • Natural gas or LP gas fired (vapor only) natural draft with aspirating-type burner, 10 inch stack
  • Powder coated side panels and frame
  • Adjustable high pressure detergent injector
  • Electronic ignition with standing pilot light
  • 10 inch draft diverter included
  • Thermal relief valve
  • Pressure switch and over-pressure safety controls
  • 24V control system
  • Polyethylene float tank (4-gallon with in-line screen filter)
  • 1/2 inch schedule 80-coil heat exchanger
  • Adjustable thermostat
  • Quick connect nozzles: 0°, 15°, 25°, and 40°
  • 50 foot x 3/8 inch steel wire-braided pressure hose with quick connects, swivel and bend restrictors
  • Adjustable pressure insulated dual lance with fixed detergent nozzle
  • Professional grade insulated trigger gun with safety lock-off

Click here for more details and available models pdf file

HEG Series: High Volume Wash
Natural Gas/LP Belt Drive

HEG-3008-1E3G high volume natural gas/lp pressure washer

Model HEG-3008-1E3G pictured

  • Open drip-proof electric motor with thermal overload protection
  • Belt drive triplex ceramic plunger General pump
  • Natural gas or LP gas fired (vapor only) natural draft with aspirating-type burner, 12 inch stack
  • Electronic ignition with intermittent pilot
  • Adjustable outlet thermostat for main temperature control
  • Hour meter
  • Time delay shutdown
  • Polyethylene float tank (8-gallon with in-line screen filter)
  • 1/2 inch schedule 80-coil heat exchanger with 8 pancake design (3/4 inch on HEG-2010 models)
  • Unique coil design allows thermostat to sense upstream water temperature to regulate outlet temperatures preventing large temperature swings
  • Quick connect nozzles: 0°, 15°, 25°, and 40°
  • 50 foot x 3/8 inch steel wire-braided pressure hose with swivel and bend restrictors (1/2 inch on HEG-2010 models)
  • Adjustable pressure insulated dual lance with fixed detergent nozzle
  • Professional grade insulated trigger gun with safety lock-off
